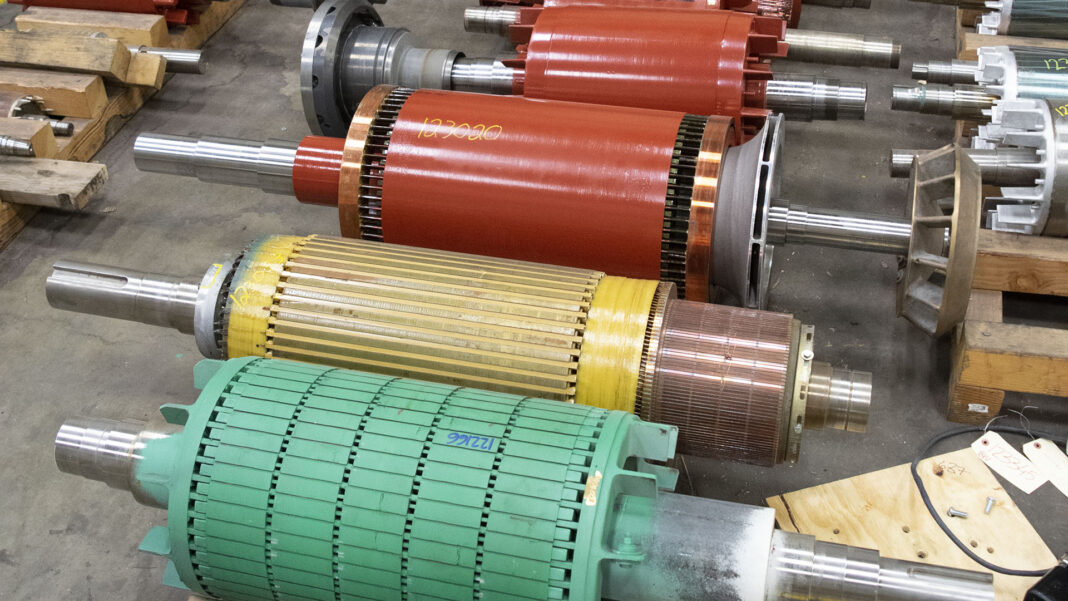

What Are the Most Common Motor Enclosure Types?
Navigating the various types of motor enclosures available on the market can be overwhelming. Each enclosure type has specific characteristics that make it suitable for different applications. Here’s a brief overview of the ten most common motor enclosures and where they are typically used.
1. Open Drip Proof (ODP)
ODP motors were once the industry standard but are now recognized for their limitations. These enclosures allow air to flow through the motor, making them susceptible to contaminants like dust and debris. The bearings, rotors, and windings are exposed to these particles, which can lead to a host of issues. ODP enclosures are designed to resist liquid ingress at angles up to 15 degrees, but they should only be used in environments free of airborne contaminants.
2. Totally Enclosed Fan Cooled (TEFC)
TEFC enclosures have become the go-to standard for many applications. These motors feature a cast iron frame, which helps cool the motor and prevents frame twisting. An external fan blows air over the motor’s surface, ensuring that the interior stays clean while cooling occurs through heat transfer via the frame. The motor’s internal air recirculates without direct exposure to external contaminants.
3. Totally Enclosed Air Over (TEAO)
TEAO motors lack an internal fan. Instead, they rely on external air sources, making them ideal for environments where constant airflow is present, such as HVAC systems. TEAO enclosures are dust-tight, ensuring protection in these specialized applications.
4. Totally Enclosed Non-Ventilated (TENV)
TENV enclosures utilize conduction and convection for cooling, without the need for an internal fan. These enclosures are typically used with motors rated at 10 HP or below, as lower horsepower motors generate less heat. TENV motors are designed to minimize temperature rise, making external fans unnecessary. However, they are not airtight and should only be used in clean environments.
5. Totally Enclosed Force Ventilated (TEFV) / Totally Enclosed Blower Cooled (TEBC)
These enclosures are suited for motors that operate at low speeds with high torque. They feature a constant-speed fan that ensures adequate cooling, even when the motor speed is low. External air is forced into the motor through ducts, preventing the exchange of internal and external air. TEFV and TEBC enclosures are commonly used with motors running on variable frequency drives (VFDs) to ensure consistent cooling across all operating speeds.
6. Weather Protected Type 1 (WP1)
WP1 enclosures are similar to ODP enclosures but with added protection. Screens are installed to prevent large debris from entering the motor. These enclosures are suitable for indoor use in relatively clean environments where extra protection is needed.
7. Weather Protected Type 2 (WP2)
WP2 enclosures build on the WP1 design, adding ventilation passages that create at least three 90-degree directional changes in the airflow. This design slows down air movement, allowing larger particles to settle before entering the motor. WP2 enclosures are suitable for outdoor environments, even in conditions where wind-driven rain at speeds up to 100 mph could be a concern.
8. Totally Enclosed Air to Air Cooled (TEAAC)
TEAAC enclosures utilize heat exchangers and fans to manage motor cooling. Internal air circulates through a heat exchanger, where it is cooled by external air driven through the system by a blower. This setup prevents any direct exchange between internal and external air, making it ideal for environments where air contamination is a concern.
9. Totally Enclosed Water to Air Cooled (TEWAC)
TEWAC enclosures operate similarly to TEAAC, but instead of external air, water is used to remove heat from the heat exchanger. These enclosures are typically used for large industrial motors, such as those in refineries, where water cooling offers a more efficient solution for heat management.
10. Explosion Proof (XP)
XP enclosures are designed for hazardous environments where there is a risk of explosion. Made from cast iron, these enclosures are built to contain any internal explosion, preventing it from spreading to the surrounding environment. XP enclosures are classified by the type of hazardous environment they are suited for:
- Class 1: For environments with combustible gases or vapors.
- Class 2: For environments with combustible or electrically conductive dust.
- Class 3: For environments where easily ignitable fibers, such as hemp or sisal, are present.
Each class is further divided into groups (A-G), which specify the exact conditions under which the enclosure can safely operate.
Understanding these motor enclosure types and their appropriate applications can help ensure that your motors run efficiently and safely in any environment. By selecting the right enclosure, you protect your motor from damage and improve its operational longevity.
