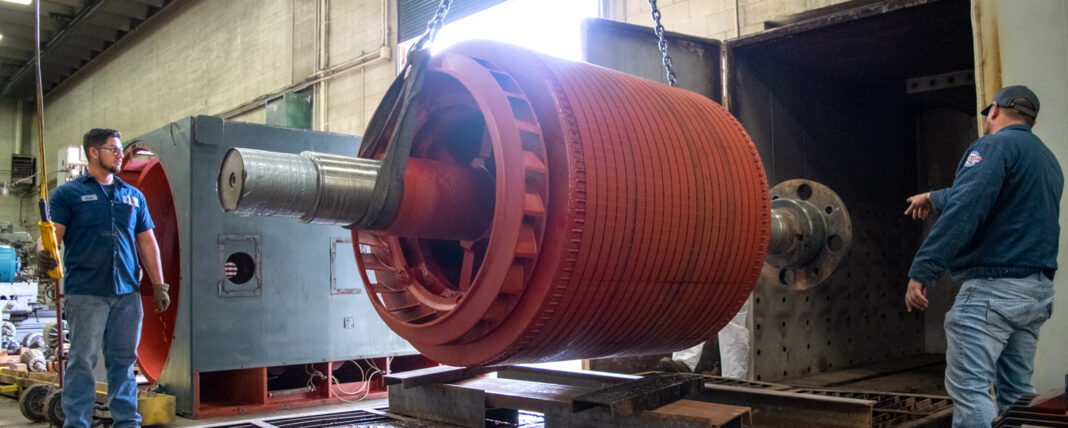

Medium voltage motors—those operating above 1000V—require more advanced protection than their lower voltage counterparts. Implementing proper protection measures, along with a strong maintenance program, can significantly extend the life of your motor and its driven applications. These practices also help prevent unexpected downtime and costly repairs from failures that are often preventable. Below, we outline three tiers of protection recommendations for medium voltage motors.
Good Protection
- Multifunction Protective Relay: This relay offers comprehensive motor protection by performing waveform analysis, detecting ground faults, monitoring rotor and stator temperatures, and running predictive algorithms. It also measures harmonics, provides resistance temperature detection, and offers zero sequence and differential options. The relay is programmable to meet your specific operational needs.
- Short Circuit Protection: Either fuses or circuit breakers are acceptable for providing basic short circuit protection for your medium voltage motor.
- Optional: You can enhance this level of protection by adding Zero Sequence Current Transformers (CT) and Resistance Temperature Detection (RTD) for additional monitoring capabilities.
Better Protection
- Multifunction Protective Relay: At this level, the multifunction protective relay continues to be a key component, providing all the protective features mentioned in the “Good” tier, including waveform analysis, ground fault detection, harmonic measurement, and temperature monitoring.
- Short Circuit Protection: As in the “Good” protection tier, fuses or circuit breakers are used for short circuit protection.
- Resistance Temperature Detection (RTD): RTD sensors monitor the motor’s internal temperature to ensure it remains within safe operating limits, helping to prevent overheating.
- Zero Sequence CT: This component detects ground faults by monitoring the sum of all phase currents, providing an additional layer of protection.
- Optional: For even better protection, consider adding Differential CTs to detect phase-to-phase faults, as well as Vibration and Shock Pulse Monitoring to detect early signs of mechanical failure.
Best Protection
- Multifunction Protective Relay: At the highest level of protection, the multifunction protective relay remains central, offering advanced motor protection through waveform analysis, predictive algorithms, temperature monitoring, and more. Its flexibility allows for precise programming to meet your motor’s specific requirements.
- Short Circuit Protection: Fuses or circuit breakers are used for short circuit protection, ensuring that your motor is safeguarded against overcurrent conditions.
- Zero Sequence CT: This component provides essential ground fault detection, enhancing your motor’s overall protection.
- Resistance Temperature Detection (RTD): RTD sensors ensure accurate temperature monitoring, helping to prevent motor overheating and extending its lifespan.
- Differential CTs: These transformers detect phase-to-phase faults, providing critical protection against internal motor failures.
- Vibration and Shock Pulse Monitoring: This monitoring system offers early detection of mechanical issues, such as bearing wear or rotor imbalance, ensuring that potential problems are identified before they lead to motor failure.
By implementing these recommended protection measures, you can ensure that your medium voltage motor operates safely and efficiently, minimizing the risk of unscheduled downtime and extending the life of your equipment. Choose the level of protection that best suits your operational needs to maintain optimal performance and reliability.
