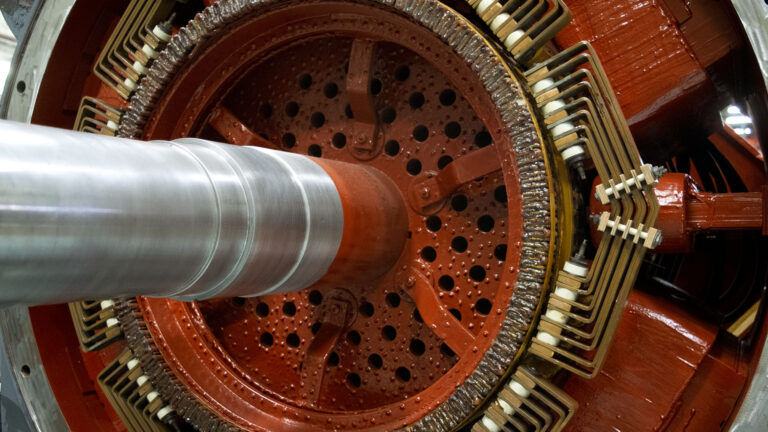

Implementing effective motor protection measures is crucial for preserving the longevity and efficiency of low voltage motors, defined as those operating under 1000V. These motors play a vital role in facilitating various processes within your facility and are integral to the seamless operation of your company.
Distinguishing itself from higher voltage counterparts, the protection requirements for motors under 1000V demand specific attention. Commonly found in North American facilities, three-phase electric motors often operate at 230V or 460V, with 600V being a popular choice in Canada.
Employing a comprehensive motor protection and monitoring system, coupled with a robust maintenance schedule, significantly extends the life of both the motor and the driven application. This proactive approach helps prevent minor issues from escalating into costly problems, minimizing downtime and potential disruptions to operations.
Outlined below are three tiers of recommended motor protection measures tailored for low voltage motors:
- Good (Basic Level):
- Electronic Overload Relay:
- Monitors overload, loss of phase, phase unbalance, and ground faults.
- Short Circuit Protection:
- Fuses or circuit breakers are acceptable.
- Electronic Overload Relay:
- Better (Intermediate Level):
- Programmable Motor Protector:
- Offers programmable monitoring of voltage, amperage, kilowattage, etc.
- Features a digital display, digital communications, trip class, recloser protection, and undercurrent monitoring.
- Short Circuit Protection:
- Fuses or circuit breakers are commonly used.
- Optional: Temperature Monitoring
- Utilizes a thermostat or resistance temperature detection method.
- Programmable Motor Protector:
- Best (Advanced Level for Critical Motors):
- Multifunction Protective Relay:
- Encompasses programmable monitoring of motor waveforms, ground faults, rotor and stator temperature predictive algorithms, harmonic monitoring, resistance temperature detection, zero sequence, differential options, etc.
- Short Circuit Protection:
- Fuses or circuit breakers are standard.
- Resistance Temperature Detection:
- Often integrated or wound into the motor.
- Optional: Zero Sequence CT and Vibration and/or Shock Pulse Monitoring
- Multifunction Protective Relay:
Choosing the appropriate level of motor protection depends on factors such as the criticality of the motor to your processes and its repair and replacement complexity. Implementing these recommended measures ensures a proactive and tailored approach to safeguarding low voltage motors from potential issues, ultimately contributing to the overall reliability and efficiency of your facility.
